Nitrogen blanketing and inerting keep flammable vapour spaces, reactive liquids, and sensitive products below the oxygen levels that create ignition, oxidation, or quality risk. On Pakistani refining, chemical, pharmaceutical, and bulk storage sites, the blanketing system only works if you can prove that oxygen in the headspace or purge stream stays where the procedure says it should. Without a trusted O2 measurement, “we opened the N2 valve” is not a control story — it is a hope.
This note is for plant, HSE, and instrumentation teams specifying oxygen monitoring for blanketing and inerting duties. It maps practical selection to two catalogue Ntron instruments available through Tetracon — the Minox-i Intrinsically Safe Oxygen Transmitter for continuous, loop-powered measurement in classified areas, and the Yellow Box Portable Oxygen Analyzer for commissioning, verification, and multi-point spot checks — with an optional mention of the compact SenzTx when OEM packages or nitrogen generators need a small transmitter. It is deliberately distinct from the site’s general note on oxygen analyzers for process safety and combustion control, which covers broader purity and combustion frames rather than blanketing/inerting headspace practice.
Why O2 monitoring matters for N2 blanketing and inerting
Blanketing and inerting replace or dilute air with nitrogen (or another inert) so that oxygen — and sometimes moisture — cannot support ignition or degrade the product. Typical Pakistani plant contexts include:
- Tank and vessel headspace — Fixed-roof and floating-roof storage, day tanks, and intermediate vessels where vapour spaces must stay below a written O2 limit during fill, empty, and idle.
- Reactor and process purge — Pre-start and shutdown purges, batch charge sequences, and continuous inert pads on reactors and mixers in refining, chem, and pharma.
- Transfer and loading — Rail/road tanker loading, hose stations, and manifold headers where air ingress during connection can re-oxygenate a previously inerted system.
- Nitrogen generators and inert gas quality — On-site N2 packages and membrane/PSA skids that feed blanketing; residual O2 in the supply gas sets the floor for what the headspace can achieve.
Write the duty (continuous headspace vs portable verification), the O2 range and alarm limits, and whether the location is hazardous-area classified — before you pick “an oxygen analyzer.” Fixed IS transmitters and portable zirconia cases answer different questions on the same blanketing programme.
Fixed IS transmitter vs portable analyzer — what each is for
| Need | Typical approach | Catalogue fit |
|---|---|---|
| Continuous O2 in blanketing / inerting headspace or sample panel (classified area) | 2-wire loop-powered electrochemical transmitter with IS certification | Minox-i |
| Commissioning, purge verification, multi-point spot checks, portable high-purity O2 | Rugged portable zirconia analyzer (multi-range / multi-sensor) | Yellow Box |
| Compact OEM / N2 generator / glove-box style transmitter | Lightweight zirconia or electrochemical head with Modbus | SenzTx |
| Combustion trim, process purity, glovebox programmes (broader O2 duties) | Application-specific O2 analyzers | See oxygen analyzers note |
| Fixed toxic / flammable gas detection (LEL, H2S, etc.) | Ex d / IS detectors — not a blanketing O2 substitute | See fixed gas detectors note |
Match the instrument to the question you must answer every shift. If operations need a live 4–20 mA O2 trend and interlock into DCS/PLC for a blanketed tank or inerted reactor, a fixed IS transmitter is the natural frame. If the question is “did this purge actually finish?” across many nozzles, tankers, or temporary sample points, a portable analyzer earns its keep — and complements, rather than replaces, the fixed points.

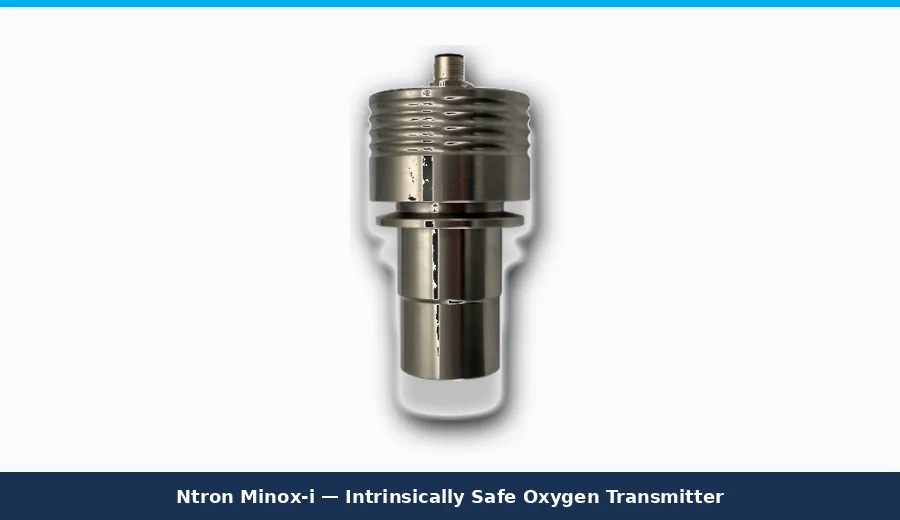

When Ntron Minox-i fits
The Minox-i is catalogue-positioned as a reliable, cost-effective 2-wire, loop-powered oxygen transmitter with a 4–20 mA output, built around long-life electrochemical sensor technology. Process connection options (KF40, flow-through, or 2 inch tri-clamp) support direct insertion or external/sample-panel mounting. Catalogue features include measurement from 0–10 ppm(v) to 0–25% O2, 24 VDC loop power, M12 electrical connection, and hazardous-area certification across ATEX, IECEx, UKEX, Japan Ex, and North American standards. Listed applications include glove box purge and leak detection, additive manufacturing, gas generation (oxygen / nitrogen), semiconductor tools, wave soldering, membrane air separators, inert welding gases and inert ovens, and medical gas duties — all of which share the same control idea as tank blanketing: prove oxygen stays low where the procedure requires it.
Prefer Minox-i-class when you need continuous O2 into DCS/PLC for blanketing or inerting, when the mounting location is (or may be) hazardous-area classified, when a simple 2-wire loop is easier than a multi-parameter analyzer house, and when electrochemical chemistry suits the sample (no hot zirconia cell in a hydrocarbon-rich background that would forbid it). It is not a portable commissioning tool — keep Yellow Box-class for that — and it is not a substitute for LEL/toxic fixed gas detection around the same pad.

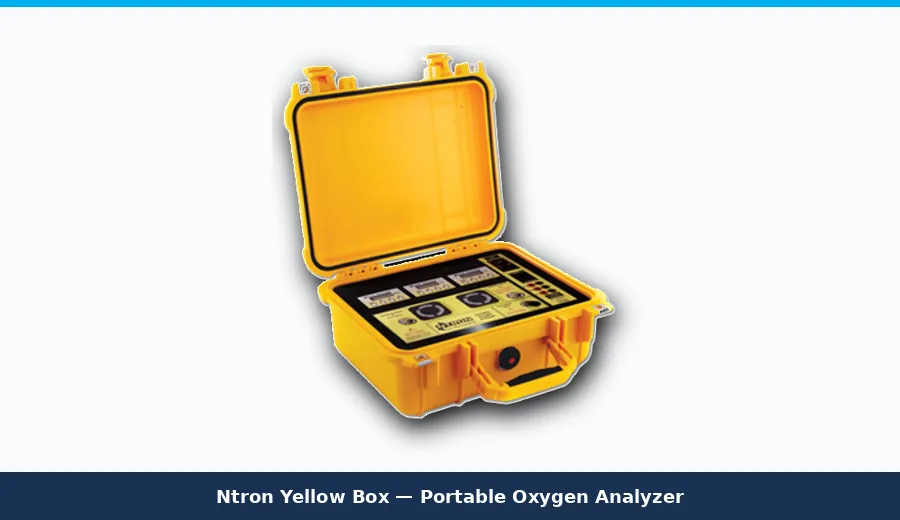

When Ntron Yellow Box fits
The Yellow Box is a compact, robust, transportable oxygen analyzer in a rugged case for high-purity oxygen measurement. Catalogue positioning includes long-life solid-state zirconia sensors, fast response with virtually no drift, ranges such as 0–1,000 ppm, 0–25%, and 0–96% O2, optional rechargeable battery, integral flow meter, LCD with 4-button HMI, and 2- or 3-sensor configurations with analog (mA) output per channel. Applications listed include gas generation (oxygen / nitrogen), pharmaceutical industries, additive manufacturing, and medical gas applications — exactly the contexts where Pakistani plants verify nitrogen quality, finish a purge, or prove a temporary sample point before handing the line back to operations.
Keep Yellow Box-class when technicians must move between tanks, loading arms, and generator outlets; when commissioning a new blanketing skid needs multi-range confirmation before fixed transmitters are trusted; or when QC wants an independent portable check against the fixed Minox-i trend. It does not replace a permanently wired IS transmitter for 24/7 headspace interlocks.
Optional: SenzTx for compact generator / OEM packages
Where a nitrogen generator skid, glove box, or OEM inerting package needs a small, lightweight transmitter rather than a tank-headspace IS loop, the SenzTx offers zirconia or electrochemical options, ranges from 0–1000 ppm up to percent-level O2, RS485 Modbus, and KF40 or flow-through connections in a sub-0.3 kg head. Use it when the duty is skid-integrated O2 feedback; keep Minox-i when the plant needs a certified 2-wire loop on a classified blanketing point; keep Yellow Box when people must walk the measurement to the sample.
Practical use cases in Pakistan
- Refinery and terminal tank blanketing — Continuous Minox-i-class O2 on critical headspace sample panels, with Yellow Box verification after outages, seal work, or nitrogen supply changes.
- Chemical and batch reactor inerting — Fixed O2 for the pad/purge interlock; portable checks at temporary sample valves during turnaround and recipe changes.
- Pharma and specialty storage — Documented O2 limits for oxidation-sensitive products; portable zirconia for room-to-room or vessel-to-vessel confirmation during campaigns.
- On-site nitrogen generation — Residual O2 in N2 product decides whether blanketing can meet the headspace target. SenzTx- or Yellow Box-class measurement on the generator outlet complements tank-side Minox-i.
- Loading and hose stations — Air ingress during connect/disconnect is a classic re-oxygenation path. Portable verification after reconnect; fixed points where the risk assessment requires continuous monitoring.
Selection and integration tips
- Write range and alarm limits first — ppm vs percent, trip setpoints, and whether the limit is HSE (ignition) or quality (oxidation).
- Sample integrity for headspace — Condensation, liquid carryover, and dead legs invent oxygen or kill the sensor. Treat the sample system as part of the analyzer.
- Hazardous area and sensor chemistry — Match IS certification and electrochemical vs zirconia to the gas background (hydrocarbons can rule out hot zirconia).
- Own the 4–20 mA / Modbus story — Blanketing O2 alarms belong in the same DCS/PLC narrative as nitrogen supply pressure and pad valves.
- Calibrate and dual-check on a written rhythm — Fixed transmitters plus portable Yellow Box checks catch drift and sample-system faults early.
- Do not conflate duties — Blanketing O2 is not combustion trim, not LEL detection, and not specialty-gas ppb nitrogen purity. Link those programmes separately.
FAQ
Can Yellow Box replace Minox-i on a blanketed tank?
No for continuous interlocks. Yellow Box is for portable verification and commissioning. Continuous headspace or sample-panel duties in classified areas need a fixed, loop-powered IS transmitter such as Minox-i-class.
When is Minox-i the better first buy?
When you need 24/7 O2 into DCS/PLC for blanketing or inerting, with hazardous-area certification and a simple 2-wire installation.
Where does SenzTx fit versus Minox-i?
SenzTx fits compact generator, glove-box, and OEM packages (Modbus, light head). Minox-i fits plant blanketing points that need a certified 2-wire IS loop. Choose from mounting, area classification, and control-system interface — not from the brochure title alone.
How Tetracon supports blanketing O2 choices
Tetracon supplies gas analysis and industrial instrumentation for Pakistan industry, including Ntron oxygen transmitters and portable analyzers used on blanketing, inerting, and nitrogen-generation duties. Application support through the contact page and services team can help match fixed IS transmitters and portable analyzers to your tanks, reactors, and N2 skids. Start with catalogue pages for Ntron Minox-i, Yellow Box, and optionally SenzTx, or browse Ntron on the site.
Key takeaways
Oxygen monitoring for nitrogen blanketing and inerting on Pakistani process plants is about proving headspace and purge O2 — continuously where the risk demands it, and portably where people must verify. Use Minox-i-class for continuous, intrinsically safe, loop-powered blanketing duties; Yellow Box-class for commissioning and multi-point verification; SenzTx when a compact generator/OEM transmitter is enough. Write range, alarms, and area classification before the purchase order, protect the sample path, and own the O2 signal in the same control story as the nitrogen pad.
