In ultra-high-purity argon and helium, nitrogen is a small impurity with outsized commercial and process consequences. On Pakistani air separation units (ASUs), specialty-gas cylinder filling lines, and electronic-gas purification skids, a few tens of parts per billion of N2 can decide whether a lot ships, whether a catalyst bed stays healthy, or whether a customer’s process rejects the cylinder. Trace nitrogen analysis is therefore not a lab curiosity — it is a plant measurement that protects purity claims and process uptime.
This note is for plant, QC, and instrumentation teams specifying continuous or near-continuous N2-in-Ar/He measurement. It maps practical selection to two catalogue LDetek instruments available through Tetracon — the LD8001+ PPB Ultra Trace Nitrogen Analyzer and the MultiDetek3 EX Gas Chromatograph — with an optional mention of the compact LDSENZ when combined N2+O2 footprint matters. Related context on the site includes oxygen analyzers for process and purity, trace moisture in process gases, and natural gas composition GC (different matrix, same discipline: match the analyzer to the impurity slate).
Why trace nitrogen matters on Pakistan ASU and specialty-gas plants
Air separation produces oxygen, nitrogen, and argon as primary products. Argon and helium streams sold into welding, electronics, laboratory, and medical-adjacent duties often carry tight impurity specs. Nitrogen contamination matters because:
- Purity certificates and customer specs — Specialty and electronic grades may specify N2 at ppb or low-ppm levels. Spot laboratory GC without an online trend leaves the plant blind between grabs.
- Argon and helium value chains — ASU argon purification, helium liquefaction feed, and cylinder filling all need to know when an upstream upset, dryer breakthrough, or cross-contamination event is loading N2 into the product.
- Catalyst and process streams — Some hydrogenation, semiconductor, and specialty-chemical steps treat nitrogen as a poison or diluent. Knowing N2 in the carrier or blanketing gas is part of process control, not only sales gas.
- Cylinder filling and blend integrity — Filling manifolds that switch grades need analyzers fast enough to catch a wrong stream before a pallet of cylinders is filled and labelled.
Write the matrix (Ar or He), the N2 range you must prove, and whether you also need O2, moisture, hydrocarbons or other impurities — before you pick “a nitrogen analyzer.” Dedicated ppb N2 and multi-impurity GC solve different problems.
Dedicated ppb N2 vs multi-impurity GC — what each is for
| Need | Typical approach | Catalogue fit |
|---|---|---|
| Online ppb-level N2 in high-purity argon or helium without a GC | Plasma emission detector with integrated ppb sub-system | LD8001+ |
| Multi-impurity / multi-stream GC in Zone 1 or Zone 2 | Purged EX enclosure GC (PED, TCD, FID, etc.) | MultiDetek3 EX |
| Compact combined trace N2 and O2 in one footprint | PED + zirconia/electrochemical O2 | LDSENZ |
| Process or purity oxygen (separate duty) | Paramagnetic / zirconia / electrochemical O2 | See oxygen analyzers note |
| Trace moisture in process gases | Ceramic / chilled mirror / TDL | See trace moisture note |
Match the analyzer to the question you must answer every shift. If the only critical impurity is ultra-trace N2 in Ar or He, a dedicated PED analyzer is usually simpler and faster than a full GC. If the duty is multi-component impurity speciation — or the analyzer must sit in a classified area with several streams — an EX-rated GC platform is the right frame.
When LDetek LD8001+ fits

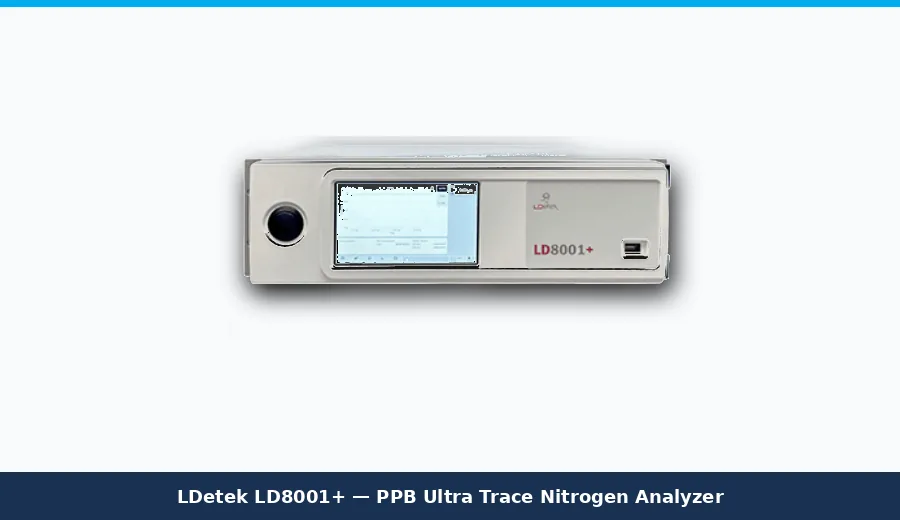

The LD8001+ (also referenced as LD8000+ family) is catalogue-positioned for ultra-pure argon or helium gas analysis. An integrated ppb sub-system enables low-ppb trace nitrogen measurement online without a separate gas chromatograph. Measurement uses a unique Plasma Emission Detector with duty-cycle control; bypass sample-flow control helps maintain sample purity, and low sample consumption supports continuous plant use. Catalogue highlights include a maintenance-free 3U cabinet, 4–20 mA output as standard, range identification relay, large-scale measurement capability, and an integrated Ethernet bootloader for software updates. Listed applications include air separation units, specialty gas laboratories, argon purification plants, helium liquefaction plants, semiconductor manufacturing, chemical plants, and gas management systems.
Prefer LD8001+-class when your primary KPI is continuous ppb N2 in Ar or He, when you want to avoid GC carrier gases and column maintenance for a single-impurity duty, and when a compact rack or lab footprint with 4–20 mA into DCS/PLC is enough. It is not a substitute for multi-impurity speciation — if you must also report hydrocarbons, CO/CO2, or a full impurity suite on one chromatogram, look at MultiDetek3 EX-class GC instead.
When LDetek MultiDetek3 EX fits

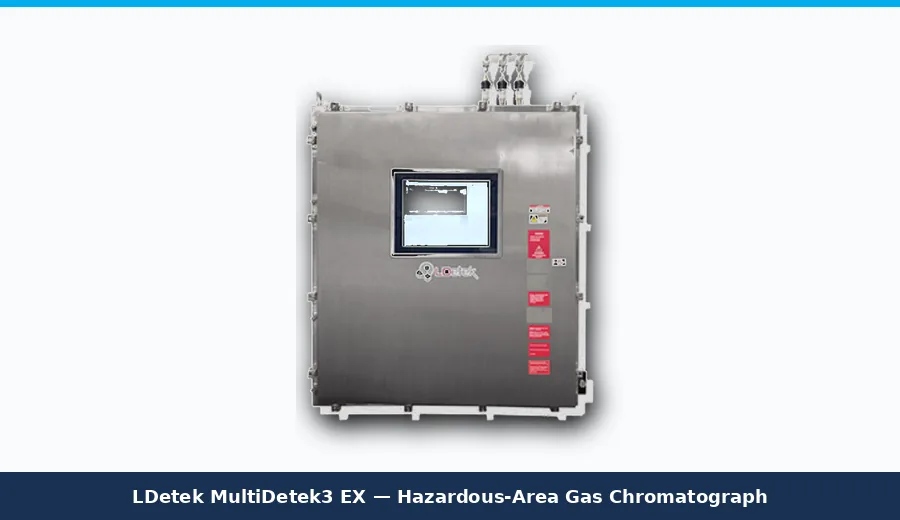

The MultiDetek3 EX houses the MultiDetek3 GC platform inside an ATEX/IECEx-certified, purged stainless steel enclosure for Zone 1 and Zone 2 use. A slide-out rack design lets multiple instruments and sampling hardware share one enclosure while remaining accessible for maintenance. Catalogue features include wall- or floor-mount enclosure, LAN remote control of GC and stream selector, up to six isothermal ovens, up to ten diaphragm/rotary valves, and detector options that can include PED, TCD, FID, quartz crystal (H2O), electrochemical, or third-party detectors (up to three per GC). Communications listed include Modbus, Profibus, Ethernet/RS232/RS485, and multiple 4–20 mA outputs. Applications listed include hydrogen production, petrochemicals (CO/CO2), natural gas / LNG processing, refineries, and air separation units.
Keep MultiDetek3 EX-class when the analyzer must live in a hazardous area without a separate purge room, when multiple streams or impurity species share one certified package, or when you need the same LDChroma software ecosystem as standard MultiDetek3 with EX packaging. Pair it with clear stream selection, sample conditioning, and a written calibration / validation rhythm — GC capability without that discipline becomes a black box that QC does not trust.
Optional: LDSENZ for compact N2 + O2
Where space is tight and both trace nitrogen and oxygen matter in one instrument, the LDSENZ pairs LDetek’s Plasma Emission Detector for N2 with a Senz-Tx zirconia or electrochemical oxygen sensor from sister brand Ntron. Catalogue positioning targets industrial process monitoring, medical gas, laboratory, glove box / purged box, additive manufacturing, and gas purification — with Modbus and a web admin interface. Use it when combined N2+O2 beats two separate boxes; keep LD8001+ when ultra-trace N2-in-Ar/He is the purity gatekeeper and O2 is already covered elsewhere.
Practical use cases in Pakistan
- ASU argon product and purification — Continuous N2 in argon product or purification stages catches upstream upsets before cylinders or bulk trailers leave with out-of-spec gas. LD8001+-class online N2 is the natural fit when N2 is the purity KPI.
- Specialty and electronic gas cylinder filling — Grade switches and manifold integrity need fast feedback. Trend N2 on the fill header; keep lab GC for periodic certification where the quality system requires it.
- Helium liquefaction and recovery — Trace N2 in helium feed or purified streams affects liquefaction efficiency and customer specs. Dedicated PED analysis avoids waiting on a full chromatographic cycle when N2 alone drives the decision.
- Hazardous-area multi-impurity skids — Hydrogen, petrochemical, or ASU analyzer houses in Zone 1/2 benefit from MultiDetek3 EX-class when several impurities and streams share one certified enclosure.
- Catalyst / process blanketing — Where N2 contamination in Ar/He carriers or purge gases affects yield, put the analyzer on the stream that QC and operations both own — not only on a quarterly lab coupon.
Selection and integration tips
- Define matrix and range — Argon vs helium, ppb vs ppm, and whether background impurities will interfere with the chosen method.
- Sample integrity first — Dead legs, permeable tubing, and poor bypass flow invent nitrogen that was never in the process. Treat sample lines as part of the analyzer.
- Own the 4–20 mA / Modbus story — Alarms and interlocks for out-of-spec purity belong in the same DCS story as the filler or purification PLC.
- Calibrate and validate on a written rhythm — Certified standards, overdue lists, and dual-check with lab GC when the quality system demands it.
- Do not conflate duties — Trace N2 purity is not process oxygen safety, not moisture, and not natural-gas BTU GC. Link those programmes separately (see related notes below).
- Standardise spares and training — One manufacturer family for PED N2 and EX GC reduces spare-parts and software chaos across an ASU or filling plant.
FAQ
Do we still need a gas chromatograph if we buy LD8001+?
For continuous ppb N2 in Ar or He as the primary KPI, LD8001+-class is designed to work without a separate GC. You may still keep laboratory or MultiDetek3-class GC for multi-impurity certification, other species, or quality-system dual methods.
When is MultiDetek3 EX the better first buy?
When you need multi-impurity or multi-stream chromatography in Zone 1/2, or when N2 is only one of several impurities that must be reported from a single certified package.
Where does LDSENZ fit versus LD8001+?
LDSENZ fits compact combined N2+O2 duties. LD8001+ fits dedicated ultra-trace N2-in-Ar/He purity monitoring. Choose from the measurement question and footprint, not from the brochure title alone.
How Tetracon supports trace nitrogen choices
Tetracon supplies gas analysis and industrial instrumentation for Pakistan industry, including LDetek ultra-trace nitrogen and hazardous-area GC products. Application support through the contact page and services team can help match dedicated ppb N2 analyzers and multi-impurity EX GC to your ASU, specialty-gas, or process streams. Start with catalogue pages for LDetek LD8001+, MultiDetek3 EX, and optionally LDSENZ, or browse LDetek Inc. on the site.
Key takeaways
Trace nitrogen analysis for Pakistani specialty-gas and air separation plants is about proving ppb-level N2 in argon and helium — and knowing when a dedicated PED analyzer beats a full GC. Use LD8001+-class for online ultra-trace N2-in-Ar/He without a chromatograph; MultiDetek3 EX-class when multi-impurity, multi-stream GC must sit in Zone 1/2; LDSENZ when compact combined N2+O2 is enough. Write matrix, range, and impurity slate before the purchase order, protect sample integrity, and own the alarms in the same control story as filling and purification.
