QED QED Environmental Systems Ltd

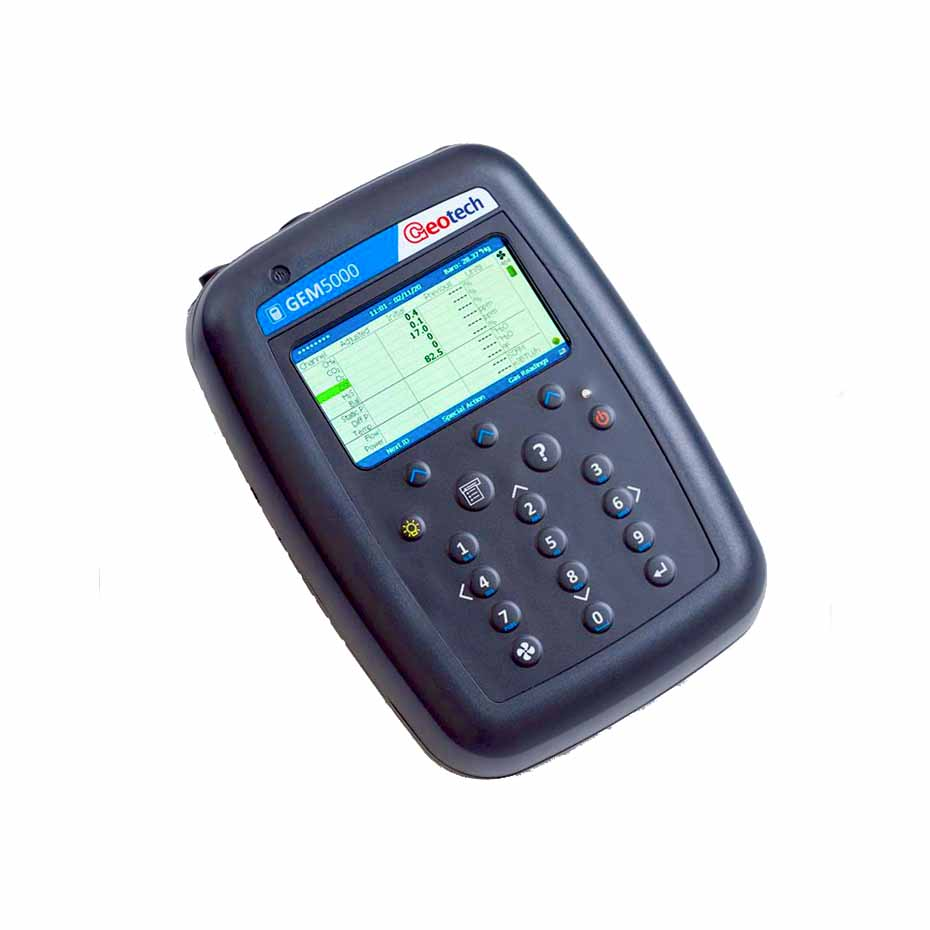

GEM5000 Landfill Gas Analyser

Name: GEM5000 Landfill Gas Analyser
Brand: QED Environmental Systems Ltd
SKU: QED-GEM5000

Landfill gas extraction monitor measuring CH4, CO2 and O2 to balance the gas field and maximise CH4 revenue.

ModelGEM5000

SKUQED-GEM5000

CategoryGas Analysis & Chromatography

Request Quote Contact Sales

Key Features

Certified: ATEX, IECEx, CSA, MCERTS and UKAS calibration (ISO 17025)
Measures % CH4, CO2 and O2
Records static and differential pressure
Calculates gas flow (m3/h) and calorific value (kW or BTU) with external flow device and Gas Analyser Manager
CH4 and CO2 accuracy ±0.5 % after calibration
Up to 6 gases monitored; datalogging and profiling
3-year warranty

Overview

The Geotech GEM5000 landfill gas extraction monitor measures CH4, CO2 and O2. It is an easy to use analyser designed to aid balancing of the gas field, maximise power output and ultimately maximise revenue from CH4 extraction. It records static and differential pressure and can calculate gas flow and calorific value with an external flow device.

Working Principle

CH4 and CO2 are measured by a dual-wavelength infrared sensor with reference channel; O2 and optional CO (H2 compensated), H2S, NH3 and H2 by internal electrochemical sensors. An internal pump (550 ml/min typical) draws the sample from the extraction well or pipework.

Applications

Benefits

Aids balancing of the gas field with real-time adjustments
Maximises power output and revenue from CH4
No need for self-certification of anemometer

Technical Specifications

Standard Gas Cells
CH4	0–100 % (±0.5 % vol 0–70 %; ±1.5 % vol 70–100 %)
CO2	0–100 % (±0.5 % vol 0–60 %; ±1.5 % vol 60–100 %)
O2	0–25 % (±1.0 % vol)

Optional Gas Cells
Ranges	H2S 0–50 ppm up to 0–10,000 ppm; CO 0–500/1,000/2,000 ppm (H2-compensated option); NH3 0–1,000 ppm; H2 0–1,000 ppm

Performance
Response T90	CH4/CO2 ≤ 10 s; O2 ≤ 20 s; H2S/CO ≤ 30 s; NH3/H2 ≤ 90 s

Pump
Flow	550 ml/min typical
Flow Fail Point	-200 mbar vacuum, user settable

Power
Battery	Rechargeable NiMH pack, typical use 8 hours
Charger	Mains 100–240 V, approx. 4 h charge

Downloads

Datasheet (PDF)PDF

Download

Frequently Asked Questions

What warranty is offered on this product?

All Tetracon-supplied instruments carry the original manufacturer warranty (typically 12–24 months) plus first-line local support from our Islamabad service centre.

Do you provide installation and commissioning?

Yes. Our manufacturer-trained engineers offer on-site installation, commissioning and startup training anywhere in Pakistan.

Are spares and calibration available locally?

Common spares are held in local stock. Calibration is available at our lab or on-site with NIST-traceable reference standards.

How long is the typical lead time?

Stocked items ship within 3–5 working days; engineered configurations typically 6–10 weeks depending on manufacturer schedule.
