QED QED Environmental Systems Ltd

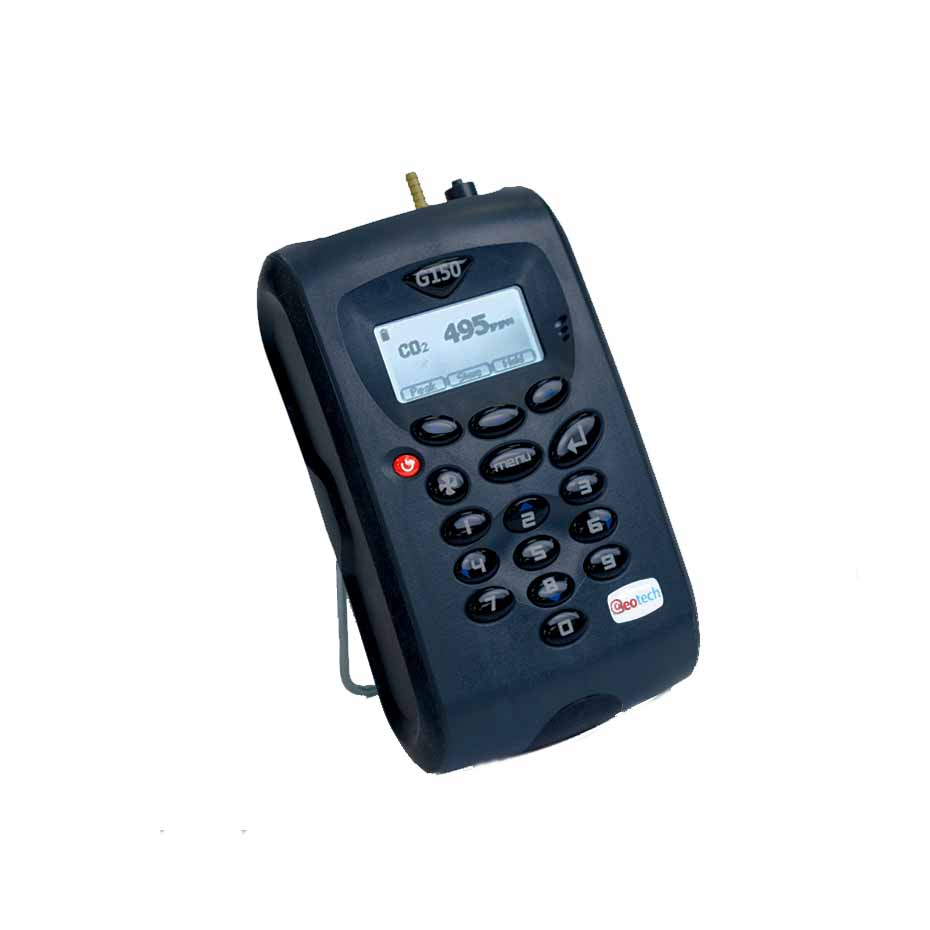

G150 Carbon Dioxide Analyser

Name: G150 Carbon Dioxide Analyser
Brand: QED Environmental Systems Ltd
SKU: QED-G150

CO2 indoor air quality analyser, 0–10,000 ppm, for IAQ audits and concealed-person detection.

ModelG150

SKUQED-G150

CategoryGas Analysis & Chromatography

Request Quote Contact Sales

Key Features

CO2 0–10,000 ppm (±1.5 % of range; typically ±10 ppm at 500 ppm after user calibration)
Optional O2 0–100 %
Optional dual temperature probes 0–50 °C or humidity sensor 0–100 % RH
Preset audible and visual alarms
Optional 1 m probe (Stowseek)
Data storage (1000 reading sets + 270 events) and USB download

Overview

The Geotech G150 is a CO2 analyser designed for indoor air quality applications. It measures CO2 0–10,000 ppm with options for O2, dual temperature probes, humidity, preset alarms and a 1 m Stowseek probe for illegal immigrant detection.

Working Principle

CO2 is measured by a custom dual-wavelength infrared cell with reference channel; optional O2 by an internal electrochemical cell. An internal pump (100 cc/min) draws the sample, with built-in gas moisture removal.

Applications

Benefits

Quick verification of CO2 levels for site audits
Data logging for long-term application
Built-in gas moisture removal

Technical Specifications

Gas Ranges
CO2	0–10,000 ppm, dual-wavelength IR, ±1.5 % of range, T90 ≤ 20 s
O2 (optional)	0–100 %, electrochemical, ±1.0 % of range, T90 ≤ 60 s

Facilities
Temperature (optional)	2 probes, 0–50 °C, ±0.2 °C
RH (optional)	0–100 % RH, ±1.5 % RH
Communications	USB mini-B

Power
Battery	Li-ion, 12 h (10 h with pump), 600 cycles
Charging	5 Vdc external supply, approx. 4 h

Downloads

Datasheet (PDF)PDF

Download

Frequently Asked Questions

What warranty is offered on this product?

All Tetracon-supplied instruments carry the original manufacturer warranty (typically 12–24 months) plus first-line local support from our Islamabad service centre.

Do you provide installation and commissioning?

Yes. Our manufacturer-trained engineers offer on-site installation, commissioning and startup training anywhere in Pakistan.

Are spares and calibration available locally?

Common spares are held in local stock. Calibration is available at our lab or on-site with NIST-traceable reference standards.

How long is the typical lead time?

Stocked items ship within 3–5 working days; engineered configurations typically 6–10 weeks depending on manufacturer schedule.

Request a Quote — G150 Carbon Dioxide Analyser

Complete the form below and one of our engineers will respond within 1 working day with pricing and lead time. Prefer email? Contact our sales team.
