QED QED Environmental Systems Ltd

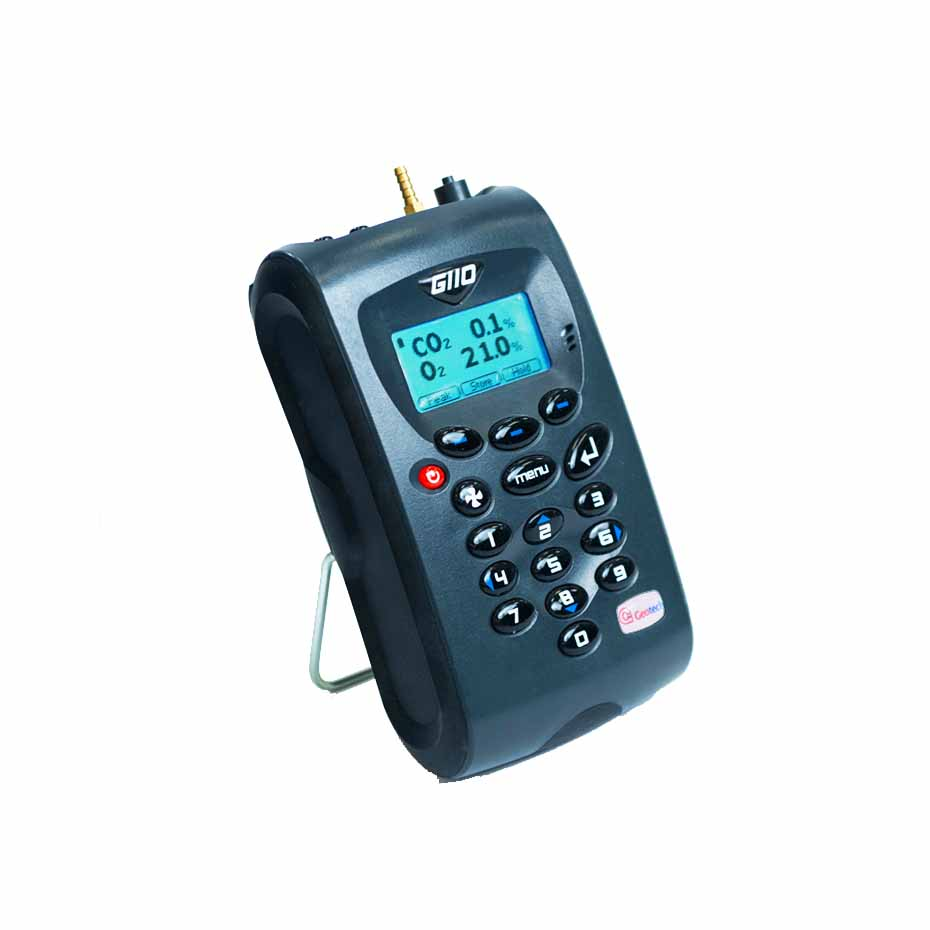

G110 CO2 Monitor Gas Analyser

Name: G110 CO2 Monitor Gas Analyser
Brand: QED Environmental Systems Ltd
SKU: QED-G110

CO2 analyser for specialist controlled-atmosphere monitoring, including the brewing industry.

ModelG110

SKUQED-G110

CategoryGas Analysis & Chromatography

Request Quote Contact Sales

Key Features

CO2 0–100 % (±1 % of range after calibration)
Optional O2 0–100 %
Optional dual temperature probes 0–50 °C
Optional humidity sensor 0–100 % RH
Data storage (1000 reading sets + 270 events) and USB download
User-selectable CO2 and O2 alarms
IP40, 495 g handheld

Overview

The Geotech G110 is a CO2 analyser designed to monitor CO2 for multiple applications including the brewing industry. It measures CO2 0–100 % with options for O2, dual temperature probes and humidity, in a fast, simple-to-use instrument.

Working Principle

CO2 is measured by a custom dual-wavelength infrared cell with reference channel; optional O2 by an internal electrochemical cell (approx. 3-year life in air). An internal pump (100 cc/min) draws the sample, with built-in gas moisture removal.

Applications

Benefits

Accurate CO2 readings and quick verification of CO2 levels
Time saving with dual temperature probes
Built-in gas moisture removal

Technical Specifications

Gas Ranges
CO2	0–100 %, dual-wavelength IR, ±1 % of range, T90 ≤ 20 s
O2 (optional)	0–100 %, electrochemical, ±1 % of range, T90 ≤ 60 s

Facilities
Temperature (optional)	2 probes, 0–50 °C, ±0.2 °C
RH (optional)	0–100 % RH, ±1.5 % RH
Communications	USB mini-B

Power
Battery	Li-ion, 12 h (10 h with pump), 600 cycles
Charging	5 Vdc external supply, approx. 4 h

Physical
Weight	495 g
Size	165 × 100 × 55 mm
IP Rating	IP40

Downloads

Datasheet (PDF)PDF

Download

Frequently Asked Questions

What warranty is offered on this product?

All Tetracon-supplied instruments carry the original manufacturer warranty (typically 12–24 months) plus first-line local support from our Islamabad service centre.

Do you provide installation and commissioning?

Yes. Our manufacturer-trained engineers offer on-site installation, commissioning and startup training anywhere in Pakistan.

Are spares and calibration available locally?

Common spares are held in local stock. Calibration is available at our lab or on-site with NIST-traceable reference standards.

How long is the typical lead time?

Stocked items ship within 3–5 working days; engineered configurations typically 6–10 weeks depending on manufacturer schedule.

Request a Quote — G110 CO2 Monitor Gas Analyser

Complete the form below and one of our engineers will respond within 1 working day with pricing and lead time. Prefer email? Contact our sales team.
