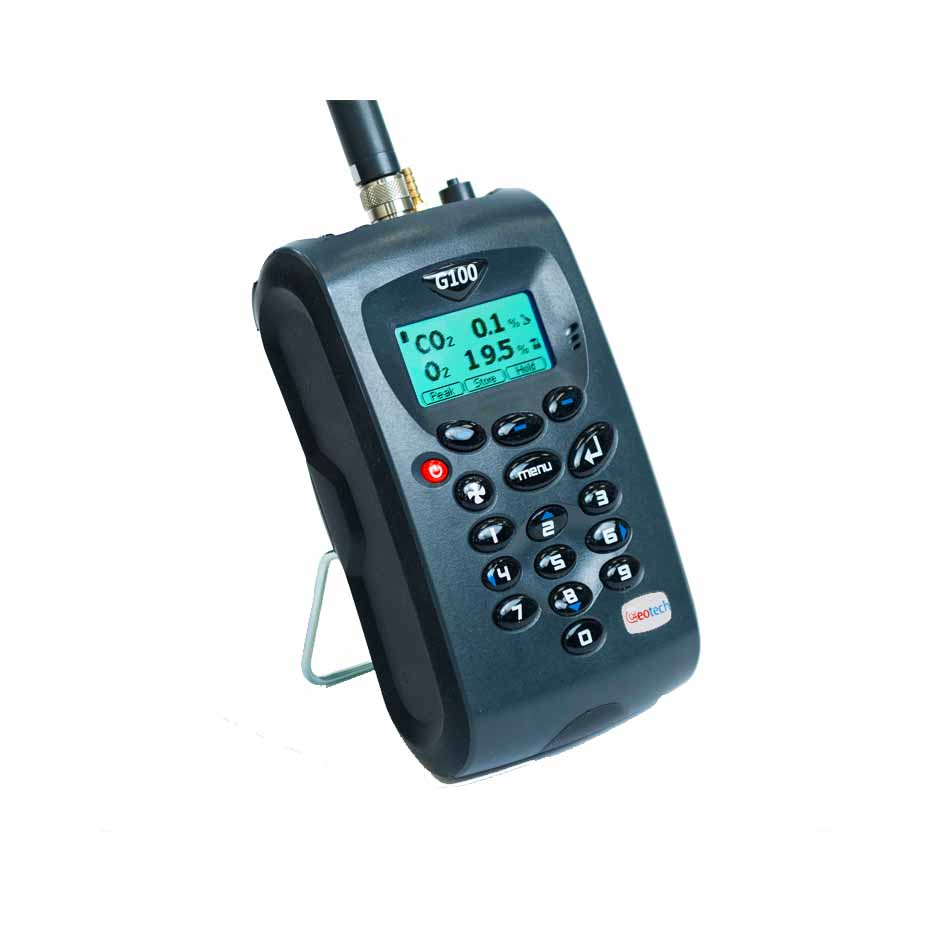

G100 Portable CO2 Analyser

Name: G100 Portable CO2 Analyser
Brand: QED Environmental Systems Ltd
SKU: QED-G100

CO2 incubator analyser for fast, accurate verification of incubators in research and pharmaceutical markets.

ModelG100

SKUQED-G100

CategoryGas Analysis & Chromatography

Request Quote Contact Sales

Key Features

CO2 0–20 % (±1 % of range after calibration)
Optional O2 0–100 %
Optional dual temperature probes 0–50 °C
Optional humidity sensor 0–100 % RH
Data storage (1000 reading sets + 270 events) and USB download
User-selectable CO2 and O2 alarms
Large, well-lit display

Overview

The Geotech G100 is a CO2 analyser specifically designed to monitor CO2 for the verification of incubators in research and pharmaceutical markets. It measures CO2 0–20 % with options for O2, dual temperature probes and humidity, in a fast, simple-to-use laboratory instrument.

Working Principle

CO2 is measured by a custom dual-wavelength infrared sensor with reference channel; optional O2 by an internal electrochemical cell (approx. 3-year life in air). An internal pump (100 cc/min) draws the sample, with built-in gas moisture removal.

Applications

Benefits

Quick verification of CO2 incubator levels
Time saving with dual temperature probes
Built-in gas moisture removal

Technical Specifications

Gas Ranges
CO2	0–20 %, dual-wavelength IR, ±1 % of range, T90 ≤ 20 s
O2 (optional)	0–100 %, electrochemical, ±1 % of range, T90 ≤ 60 s

Facilities
Temperature (optional)	2 probes, 0–50 °C, ±0.1 °C (32–44 °C)
RH (optional)	0–100 % RH, ±1.5 % RH
Communications	USB mini-B

Power
Battery	Li-ion, 12 h (10 h with pump), 600 cycles
Charging	5 Vdc external supply, approx. 4 h

Environmental
Operating Temperature	0–50 °C
Pump Flow	100 cc/min typical

Downloads

Datasheet (PDF)PDF

Download

Frequently Asked Questions

What warranty is offered on this product?

All Tetracon-supplied instruments carry the original manufacturer warranty (typically 12–24 months) plus first-line local support from our Islamabad service centre.

Do you provide installation and commissioning?

Yes. Our manufacturer-trained engineers offer on-site installation, commissioning and startup training anywhere in Pakistan.

Are spares and calibration available locally?

Common spares are held in local stock. Calibration is available at our lab or on-site with NIST-traceable reference standards.

How long is the typical lead time?

Stocked items ship within 3–5 working days; engineered configurations typically 6–10 weeks depending on manufacturer schedule.
