BIOMETHANE 3000 Methane & Oxygen Reader
Fixed biomethane analyser for high-accuracy CH4 (90–100 %) and low O2 (< 1 %) readings in biogas upgrading.
Key Features
- CH4 improved accuracy 90–100 %
- O2 improved accuracy below 1 % to 2 d.p.
- Fully automated calibration function
- Modular hot-swap design for on-site maintenance
- CSA, ATEX and IECEx certified for Zone 2 (not auto-calibration section)
- ISO/IEC 17025 calibration
- 6 × 4–20 mA outputs, Modbus RTU; optional Profibus, Profinet, Ethernet
- IP65, heater as standard, built-in liquid level alarm
Overview

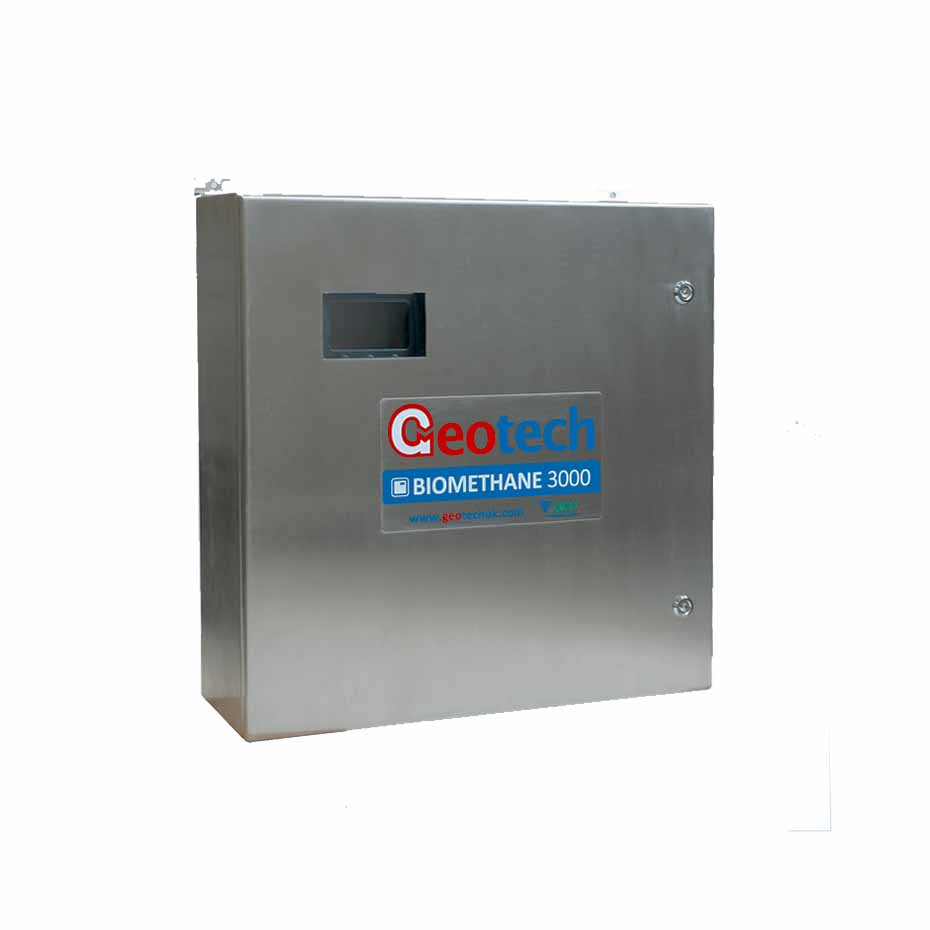

The Geotech BIOMETHANE 3000 is a fixed analyser designed for high-accuracy methane and oxygen readings in biomethane applications, giving confidence at first-stage production that readings are above the 95 % methane level and below the 1 % oxygen level. It continuously monitors one sample point and is CSA, ATEX and IECEx certified for Zone 2 (excluding the auto-calibration section).
Working Principle
The sample from one sample point is analysed continuously for CH4 and O2. A fully automated calibration function maintains CH4 accuracy in extreme temperatures, with dedicated alarms for auto-calibration status and liquid level; results are output on 6 × 4–20 mA channels and Modbus RTU.
Applications
Benefits
- Prevents the risk of injecting poor-quality gas into the grid
- Zero operational downtime for servicing
- Protects against O2 issues and optimises the AD process
Technical Specifications
| Sample Points | 1, continuous |
|---|---|
| CH4 | Improved accuracy 90–100 % |
| O2 | Improved accuracy below 1 % (2 d.p.) |
| Analog | 6 × 4–20 mA |
|---|---|
| Digital | Modbus RTU; optional Profibus, Profinet, Ethernet |
| Certification | CSA, ATEX, IECEx Zone 2 (excluding auto-calibration section) |
|---|---|
| Ingress Protection | IP65 |
| Calibration | ISO/IEC 17025; automated CH4 calibration |
Downloads
Datasheet (PDF)PDF
Frequently Asked Questions
What warranty is offered on this product?
All Tetracon-supplied instruments carry the original manufacturer warranty (typically 12–24 months) plus first-line local support from our Islamabad service centre.
Do you provide installation and commissioning?
Yes. Our manufacturer-trained engineers offer on-site installation, commissioning and startup training anywhere in Pakistan.
Are spares and calibration available locally?
Common spares are held in local stock. Calibration is available at our lab or on-site with NIST-traceable reference standards.
How long is the typical lead time?
Stocked items ship within 3–5 working days; engineered configurations typically 6–10 weeks depending on manufacturer schedule.
