QED QED Environmental Systems Ltd

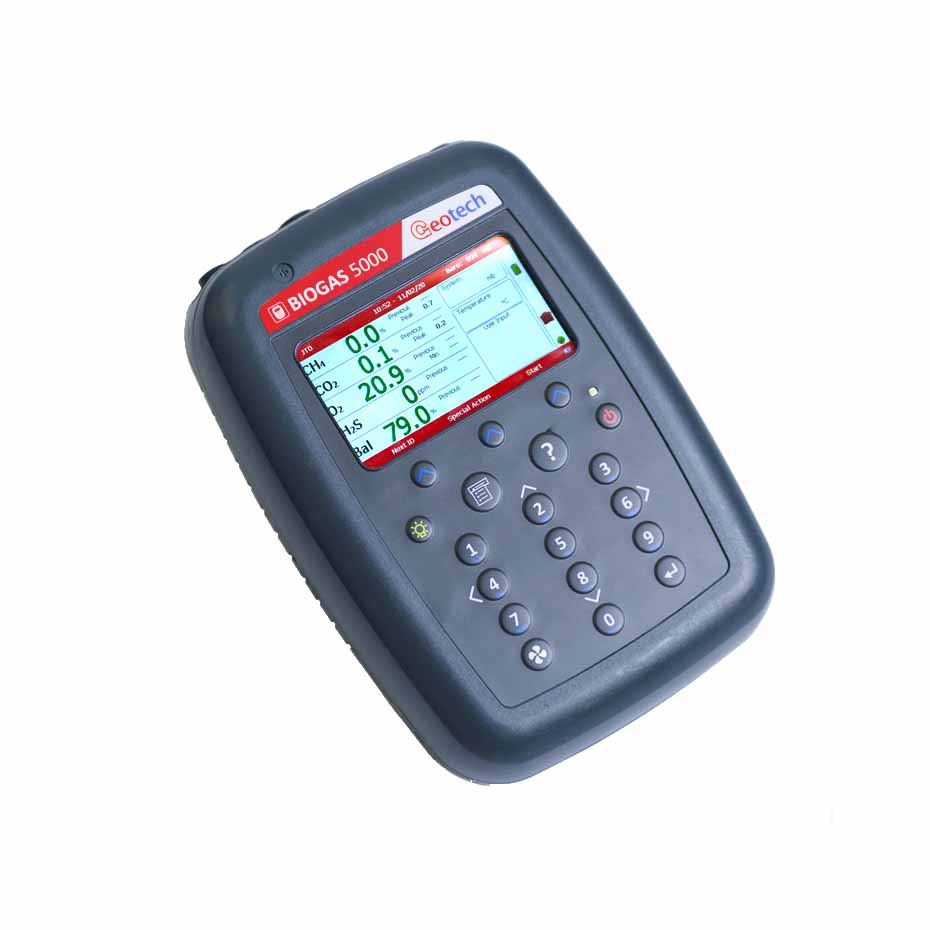

BIOGAS 5000 Portable Gas Monitor

Name: BIOGAS 5000 Portable Gas Monitor
Brand: QED Environmental Systems Ltd
SKU: QED-BIOGAS5000

Portable gas analyser for anaerobic digestion: % CH4, CO2 and O2, with optional H2S, H2, CO and NH3.

ModelBIOGAS 5000

SKUQED-BIOGAS5000

CategoryGas Analysis & Chromatography

Request Quote Contact Sales

Key Features

Certified: ATEX, IECEx, CSA, MCERTS and UKAS calibration (ISO 17025)
Measures % CH4, CO2 and O2
CH4 and CO2 accuracy ±0.5 % after calibration
Up to 6 gases monitored
Datalogging and profiling function; stores and downloads readings
Modular and upgradeable
3-year warranty

Overview

The Geotech BIOGAS 5000 is an easy to use, calibrate and configure portable gas analyser that enables consistent collection of data for improved analysis and accurate reporting, while helping to check that the digester process is running efficiently. It measures % CH4, CO2 and O2 as standard and can monitor up to 6 gases.

Working Principle

CH4 and CO2 are measured by a dual-wavelength infrared sensor with reference channel; O2 and optional H2S, H2, CO and NH3 by internal electrochemical cells. An internal pump draws the sample from the digester sample point.

Applications

Benefits

Consistent data collection for improved analysis and accurate reporting
Easy to use and calibrate
Helps check the digester process is running efficiently

Technical Specifications

Standard Gas Cells
CH4	0–100 % (±0.5 % vol 0–70 %; ±1.5 % vol 70–100 %)
CO2	0–100 % (±0.5 % vol 0–60 %; ±1.5 % vol 60–100 %)
O2	0–25 % (±1.0 % vol)

Optional Gas Cells
Ranges	H2S 0–50 ppm up to 0–10,000 ppm; CO 0–500/1,000/2,000 ppm (H2-compensated option); NH3 0–1,000 ppm; H2 0–1,000 ppm

Performance
Response T90	CH4/CO2 ≤ 10 s; O2 ≤ 20 s; H2S/CO ≤ 30 s; NH3/H2 ≤ 90 s

Power
Battery	Rechargeable NiMH pack, typical use 8 hours
Charger	Mains 100–240 V, approx. 4 h charge

Options
Available	H2S to 0–5,000 or 0–10,000 ppm; H2, NH3; Gas Analyser Manager software; ATEX anemometer / Pitot tubes; ATEX temperature probe; Bluetooth

Downloads

Datasheet (PDF)PDF

Download

Frequently Asked Questions

What warranty is offered on this product?

All Tetracon-supplied instruments carry the original manufacturer warranty (typically 12–24 months) plus first-line local support from our Islamabad service centre.

Do you provide installation and commissioning?

Yes. Our manufacturer-trained engineers offer on-site installation, commissioning and startup training anywhere in Pakistan.

Are spares and calibration available locally?

Common spares are held in local stock. Calibration is available at our lab or on-site with NIST-traceable reference standards.

How long is the typical lead time?

Stocked items ship within 3–5 working days; engineered configurations typically 6–10 weeks depending on manufacturer schedule.
