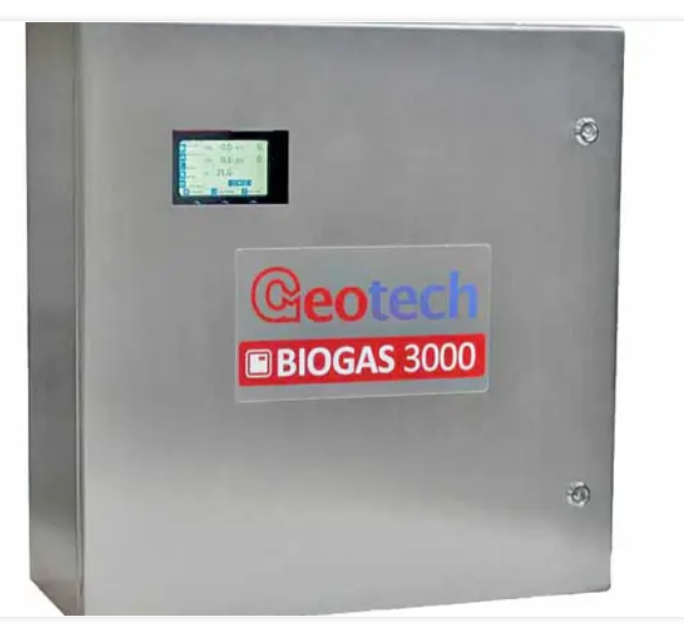

BIOGAS 3000 ATEX Certified Analyzer
ATEX-certified fixed analyzer for continuous anaerobic digestion & biogas monitoring.
Key Features
- Up to 4 sample points across the gas control process
- CH4, CO2, O2 standard; H2S, H2, CO optional (choice of up to 2)
- Modular design — hot-swap components for on-site serviceability
- ATEX and IECEx certified, Zone 2, meets Method 21 requirements
- IP65-rated enclosure for outdoor installation
- Built-in liquid-level monitoring with dedicated alarm
- Modbus RTU communication, optional Profibus / Profinet
- Up to 6 configurable 4-20 mA analog output channels
Overview
The QED BIOGAS 3000 is a next-generation fixed analyzer for continuous monitoring of the gas production process, using up to four sample points to assess CH4, CO2, O2, H2S and H2 levels. Built for the anaerobic digestion and biomethane-upgrading market, it helps sites maximize gas production yield and protect expensive capital equipment from contaminant gases in the production process.
Working Principle
Sample gas is drawn from up to four sample points and analyzed for standard components (CH4, CO2, O2) with up to two optional measurements (H2S, H2, CO). A modular design enables hot-swap serviceability, and built-in liquid-level monitoring with a dedicated alarm flags when the catchpot needs emptying.
Applications
Benefits
- Continuous or discontinuous multi-point monitoring on one platform
- Fast on-site maintenance via hot-swap modular design
- ISO/IEC 17025 calibration for measurement accuracy
- Monitors gas quality before and after desulphurization
- 3-year warranty on analyzer, 1-year on cabinet and parts
Technical Specifications
| Standard Gases | CH4, CO2, O2 |
|---|---|
| Optional Gases | H2S, H2, CO (up to 2 selected) |
| Sample Points | Up to 4 |
| Area Rating | ATEX / IECEx Zone 2, CSA certified |
|---|---|
| Enclosure | IP65-rated, outdoor use |
| Digital | Modbus RTU (Profibus / Profinet optional) |
|---|---|
| Analog | Up to 6 × 4-20 mA configurable channels |
| Analyzer | 3 years |
|---|---|
| Cabinet & Parts | 1 year |
Downloads
Datasheet (PDF)PDF
Frequently Asked Questions
What warranty is offered on this product?
All Tetracon-supplied instruments carry the original manufacturer warranty (typically 12–24 months) plus first-line local support from our Islamabad service centre.
Do you provide installation and commissioning?
Yes. Our manufacturer-trained engineers offer on-site installation, commissioning and startup training anywhere in Pakistan.
Are spares and calibration available locally?
Common spares are held in local stock. Calibration is available at our lab or on-site with NIST-traceable reference standards.
How long is the typical lead time?
Stocked items ship within 3–5 working days; engineered configurations typically 6–10 weeks depending on manufacturer schedule.
